With the MEILLER FIT KIT for crane consoles, you get a perfectly matched, ready-to-use solution for your crane setup – without the hassle of sourcing materials or costly custom fabrications.
Our prefabricated components ensure quick, safe, and economical installation on your TRIGENIUS three-way tipper.
Thanks to the bolted connection of the crane consoles to the tipper subframe and the vehicle frame, the factory-applied surfaces – with their high corrosion protection – remain intact.
Thanks to the patented, bolt-on crane interface, installing a crane is easier and faster than ever before:

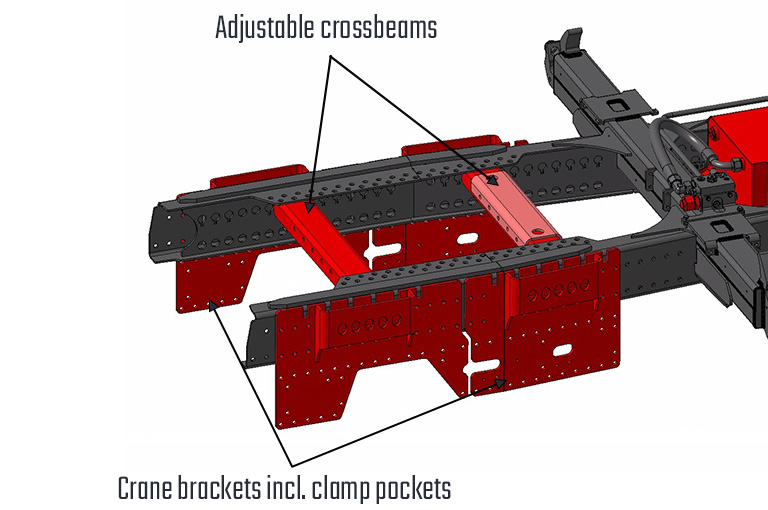

The high-strength, galvanized crane consoles ensure robust and long-lasting attachment, while a specially developed cross member in the crane area reinforces the subframe and securely locks the crane in place. Installation is available for front-mounted cranes and – starting summer 2025 – also for rear-mounted loading cranes.
Crane installation made simple
Our crane consoles come with the appropriate mounting kit, enabling a quick and straightforward retrofit to existing tipper vehicles. The well-engineered and validated system allows for installation regardless of vehicle manufacturer or the type of crane attachment. No additional grinding, welding, or painting is required.
Maximum efficiency
The retrofit solution significantly reduces installation effort and saves up to 12–15 hours of assembly time. Cross members in the crane area enhance stability, while the optimized corrosion protection ensures long-lasting structural integrity.
With the MEILLER FIT KIT for crane consoles, your tipper is ready for crane operation – quickly, safely, and economically.
Crane configurations for product types:
| TRIGENIUS-type: | D205 | D208 | D210 | D212 | D312 | D316 |
| Crane clearance: | 650-850 mm | 750-1,000 mm | 800-1,050 mm | 800-1,200 mm | 1,000-1,400 mm | 1,000-1,400 mm |
| Max crane size: * | 8 mt | 13 mt | 16 mt | 21 mt | 28 mt | 28 mt |
| Oil tank volume: | 67 l | 106 l | 106 l | 138 l | 159 l | 159 l |
| Max oil quantity: | 50,0 l | 73,6 l | 73,6 l | 113 l | 139,5 l | 139,5 l |
| Min oil quantity: | 17.7 l | 21 l | 21 l | 25.6 l | 30.5 l | 30.5 l |
| Usable oil volume: | 35.5 l | 52.6 l | 52.6 l | 87,4 l | 109 l | 109 l |
* based on total crane moment [gross] = load moment + moment from crane’s own weight
You’d like to install a crane for your customer and benefit from the MEILLER FIT KIT advantages? Then please send the completed request form to: spareparts(at)meiller.com
Are you interested in our MEILLER FIT KIT for crane mounting plates? Then contact a service partner in your vicinity. They’ll be happy to assist you.
