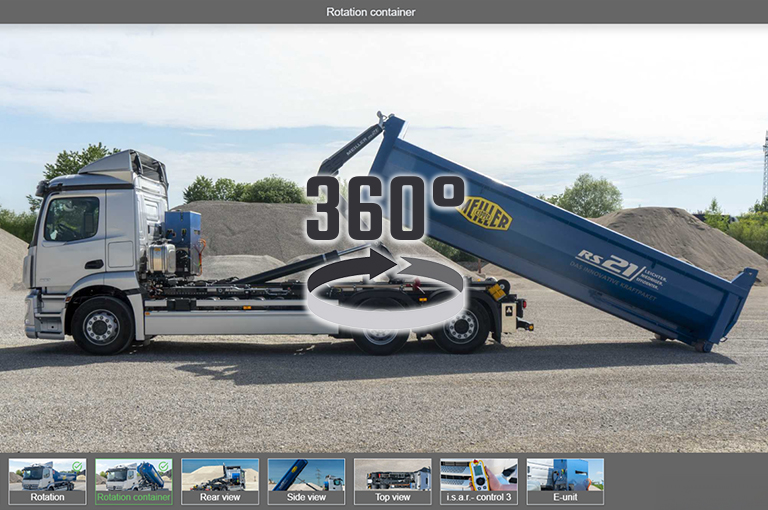

MEILLER hooklift RS21
TECTRUM® hooklift logo

TECTRUM® Hooklifts

Transport of hooklift containers more economical than ever

Every TECTRUM® hooklift from MEILLER is designed to ensure maximum productivity and efficiency, right from the first day and throughout its entire operating life. The MEILLER hooklift is designed for standard truck chassis for fast and efficient transportation of hooklift containers.

Our hooklifts impress through their low tare weight, high component strength and elasticity, simple handling as well as their long lifetime.

Make a product request

Your benefits:

  • Long lifetime and sturdy with the same MEILLER high quality
  • Maximum operating safety
  • High working speed
  • High payloads through low tare weight
Designed for future

Our promise: 5 years warranty

We strive for the highest possible quality in all our services and products and we want you to benefit from this. That is why we are granting a 5-year warranty on all load-bearing steel components for MEILLER hooklifts and skip loaders.



Models

The ideal TECTRUM® hooklift for every requirement

RS Series

Our power packs for heavy loads

  • RS21: for three-axle vehicles with a permissible total weight of up to 28 tonnes
  • RS26: for three- or four-axle vehicles with a permissible total weight of over 28 tonnes
  • RS32: for vehicles with three to five axles and a permissible total weight of over 28 tonnes
  • For all containers/skips compliant with DIN 30 722-1/2, DIN 14 505, DIN 30 730

RL Series

For payload and volume-oriented applications

  • 100 kg lighter and 40 mm lower than the RS21
  • Nominal load up to 18 t from road surface
  • For vehicles with three axles and up to 28 t permissible total weight
  • For all containers/skips compliant with DIN 30 722-1/2, DIN 14 505, DIN 30 730

RK Series

The classic hooklift

  • Nominal load from 14 t to 30 t from road surface
  • For vehicles with two, three or four axles depending on the model
  • For vehicles with 18 t to 41 t permissible total weight depending on the model
  • For all containers/skips compliant with DIN 30 722-1/2, DIN 14 505, DIN 30 730
eTRUCK ready

Fit for the future

MEILLER’s tipper bodies are compatible with all electric trucks from European manufacturers, regardless of whether they are already equipped with a mechanical power take-off (PTO) or an electromechanical PTO (emPTO) necessary for the superstructure’s hydraulics.

The electric drive offers a clear advantage: hydraulic systems can be operated according to demand, ensuring that the pump or hydraulics only run when the tipper body is in motion hence preventing unnecessary energy consumption.

Technical data

Compare our hooklifts based on their data

  • RS Series
  • RL Series
  • RK Series
Type: RS21 RS26 RS32
Nominal load: 21 t 26 t 32 t
Axles: 3 axle 3 or 4 axle 3, 4 or 5 axle
Suitable chassis: up to 28 t from 28 t from 28 t
RK weight: 2.075 kg - 2.330 kg 2.290 kg - 2.770 kg 3.090 kg - 3.680 kg
Container type: DIN 30 722-1/2, DIN 14 505, DIN 30 730 DIN 30 722-1/2, DIN 14 505, DIN 30 730 DIN 30 722-1/2, DIN 14 505, DIN 30 730
Lifting arm types: Telescopic or telescopic and tilting hook arm Telescopic or telescopic and tilting hook arm Telescopic or telescopic and tilting hook arm
Type: RL18
Nominal load: 18 t
Axles: 3 axle
Suitable chassis: up to 28 t
RK weight: 1.980 kg - 2.250 kg
Container type: DIN 30 722-1/2, DIN 14 505, DIN 30 730
Lifting arm types: Telescopic hook arm
Type: RK14 RK30
Nominal load: 14 t 30 t
Axles: 2 axles 3, 4 or 5 axle
Suitable chassis: from 18 t from 28 t
RK weight: 1.675 kg - 2.080 kg 3.095 kg - 3.670 kg
Container type: DIN 30 722-1/2, DIN 14 505, DIN 30 730 DIN 30 722-1/2, DIN 14 505, DIN 30 730
Lifting arm types: Telescopic hook arm Telescopic or telescopic and tilting hook arm

Detailed information

Learn more about our hooklifts

  • RS21
  • RS26
  • RS32
  • RL18
  • RK series

The RS21 hooklift always transports very heavy container change-over systems faultlessly. As compared to its predecessor it is

  • 2x faster to save more time in every operating cycle,
  • 200 kg lighter and therefore even more payload for every load and
  • 20 mm lower for more volume and at the same time higher stability and driving safety through the low centre of gravity. You therefore gain greater room to manoeuvre for low height clearances.

Advantages:

  • Increased lifting force with high reserves
  • Torsion-resistant frame through the innovative and unique frame profile
  • Unwelded mounting of the frame and attachment parts enhances corrosion protection
  • New efficiency package with industry-leading best working speed values

Video: TECTRUM RS26 hooklift

The TECTRUM RS26 unfolds its 26 tons of lifting capacity, especially in use for the construction industry, where it sets new standards in every respect: Not only is it lower and twice as fast as its predecessor, it also has a reduced weight of 710 kg. Suitable for 3- or 4-axle chassis

Benefits:

  • Nominal load of 26 tons with a weight reduced by 710 kg
  • Torsion-resistant frame through the innovative and unique frame profile
  • Unwelded mounting of the frame and attachment parts enhances corrosion protection
  • New efficiency package with industry-leading best working speed values
TECTRUM Abrollkipper RS32

With a nominal load of 32 tonnes, the new TECTRUM RS32 is MEILLER’s ultimate powerhouse.

The hooklift has been specifically developed for demanding operations on construction sites and landfill sites – wherever heavy loads and frequent changes between a wide variety of containers are part of everyday work.

Benefits:

  • One of the most powerful hooklifts on the market, with a nominal load of 32 t
  • High working speed and low tare weight
  • Torsion-resistant frame through the innovative and unique frame profile
  • Unwelded mounting of the frame and attachment parts enhances corrosion protection
  • New efficiency package with industry-leading best working speed values
Hooklift RL18

With the RL18 hooklift you transport container change-over systems with a large volume – and with an optimised payload.

  • 100 kg lighter than the RS21 and therefore even more payload for every load
  • 40 mm lower than the RS21 for even higher stability and driving safety and even greater room to manoeuvre for low height clearances

Advantages:

  • Torsion-resistant frame through the innovative and unique frame profile
  • Unwelded mounting of the frame and attachment parts enhances corrosion protection
  • New efficiency package with industry-leading best working speed values
Hooklift RK30

In the RK series you can find hooklifts for a 2-axle chassis and lifting capacities to 14 tons. 30-ton payloads are even possible with the large RK30 for three or four axles.

Robust construction for heavy loads

The cathodic dip coating provides lasting corrosion protection for the components of the TECTRUM RS and RL series, while the modular vehicle design allows adaptation to a wide range of operating requirements.

CDC - dip-coating method:

  • Excellent protection against corrosion
  • Insensitivity to scratches and stone chipping
  • Uniform and complete coating (even in hard-to-reach areas, on sharp edges and in thin grooves)
  • Consistent surface quality

Modular, screwed construction:

  • Attachments can be retrofitted or modified at any time
  • Weld-free pre- and final assembly
  • Quick replacement of wear parts
  • Flexible adaptability

Features and accessories

Practical solutions, cleverly thought-out

Click on: Integrated functionality Optional functionality
MEILLER TECTRUM Features
Access steps
Access steps
Aufstieg TECTRUM Abrollkipper

Access steps

Platform behind the cab with a grab handle and steps on the side underrun protection.

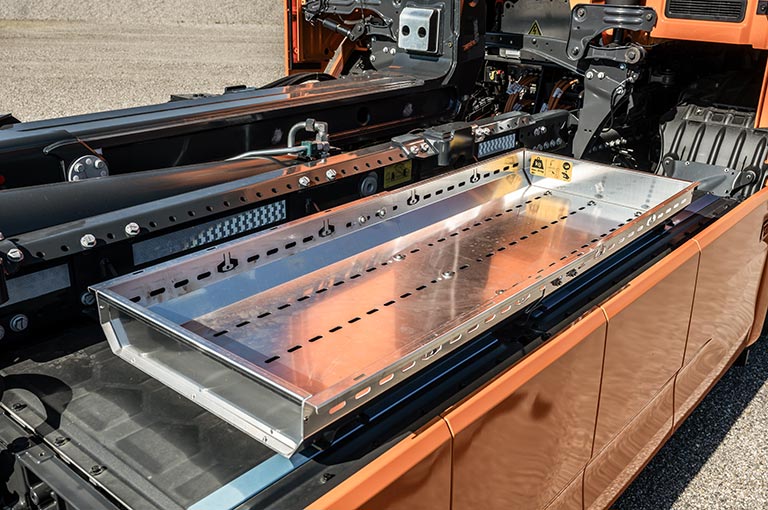

Net box or tool box
Net box or tool box
Netzkasten Abrollkipper

Net box or tool box

All brackets and fixation kits are precisely matched to the TECTRUM base frame and can be retrofitted and repositioned along the frame.

Lifting arm type
Select the appropriate lifting arm type
T-Hakenausleger Abrollkipper
Telescopic lifting arm​​​​​ (T)
TS-Hakenausleger Abrollkipper

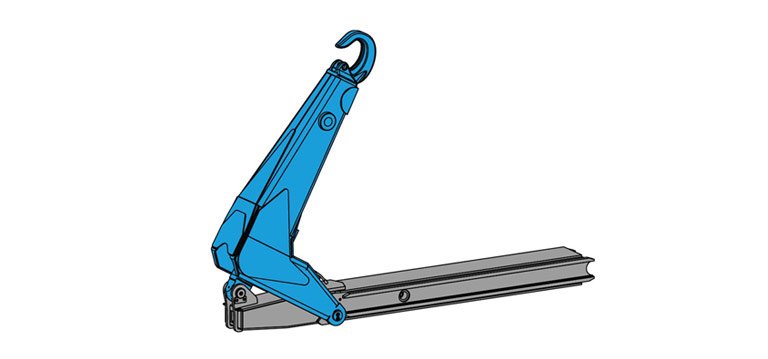

Telescoping and swivelling lifting arm (TS/TSN)

Select the appropriate lifting arm type



Telescoping lifting arm (T):

  • When it has to be simple and sturdy
  • Optimal for containers that often have the same size

Telescoping and swivelling lifting arm (TS/TSN):

  • For extra container variety
  • When heights are low
  • When the container has to be pulled on flat
  • When the container is to be transhipped onto rail wagons

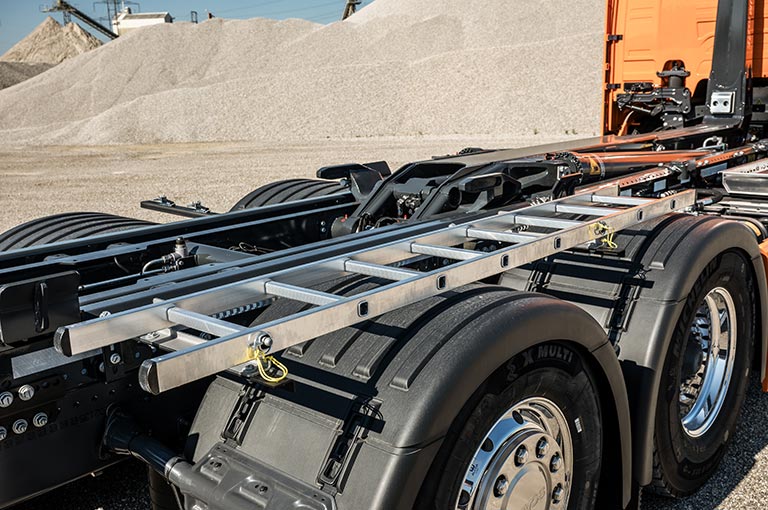

Ladder
Ladder
Aluminium Anlegeleiter Abrollkipper

Ladder

Unmounted aluminium ladder

Container lock system
Container lock system
Containerverriegelung

Container lock system

With MEILLER hooklifts, you can rely on secure, effective container locking that always suits your requirements:

  • Internal hydraulic locking mechanism (see photo): a locking bolt secures the container safely and reliably, even if the container rails are bent.
  • Hydraulic combined locking system: can be used as either an internal lock or an external lock.
  • Locking latches, fixed or bolted
  • Locking for crane skip

Our optional safety package also includes an internal hydraulic locking mechanism and hydraulic underrun protection.

MEILLER Hydraulic system
Original MEILLER hydraulic systems ensure the fastest operating cycles:
TECTRUM Abrollkipper Hydraulik

Original MEILLER hydraulic systems ensure the fastest operating cycles:

  • When tipping and rolling-off, the load-dependent quick movement valve accelerates extension of the lifting arm ram.
  • When lowering and pulling up the skip, the load-dependent speed movement doubles the retraction speed compared to the previous model.

Optional available: The efficiency package

  • Quick movement: Accelerates extension of the lifting arm ram
  • Speed movement: Accelerates retraction of the lifting arm ram
  • Sequence control: The preprogrammed operating sequences make work even more efficient.
  • Soft stop: Effective at the end of the stroke when extanding and retracting the lifting arm ram
Perforated frame
Modular, bolted design:
Gelochter Rahmen Abrollkipper

Modular, bolted design:

  • Mounting parts can be retrofitted or modified at any time
  • Weld-free pre-mounting and final mounting
  • Quick replacement of wearing parts
  • Flexible adaptability
Steel hydraulic pipework
Steel hydraulic pipework instead of hydraulic hoses
Rohrleitungen aus Stahl TECTRUM

Steel hydraulic pipework instead of hydraulic hoses

Box-type frame
Box-type frame
Geschlossenes Rahmenprofil TECTRUM

Box-type frame

Outstanding stability thanks to the box-type frame

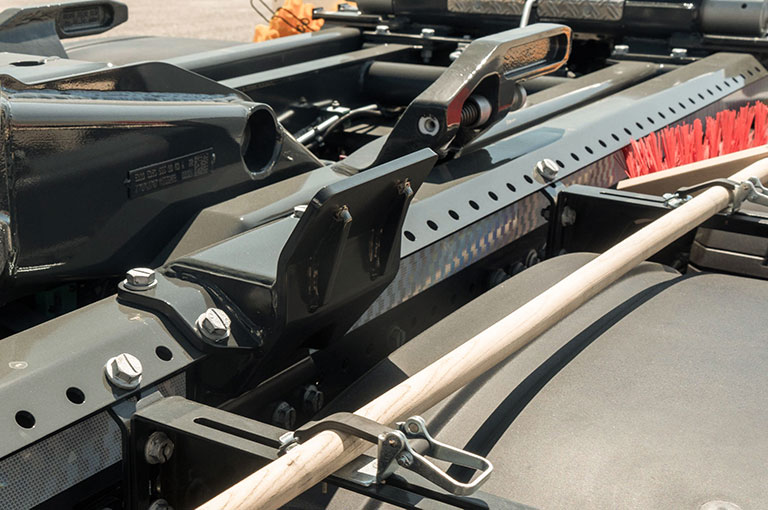

Long handle tool holder
Long handle tool holder
Stielgerätehalter Abrollkipper

Long handle tool holder

Mudguards
Mudguards
Abrollkipper Kotflügel Aluminium

Mudguards

Mudguards made from aluminium or plastic. All brackets and fixation kits are precisely matched to the TECTRUM base frame and can be retrofitted and repositioned along the frame.

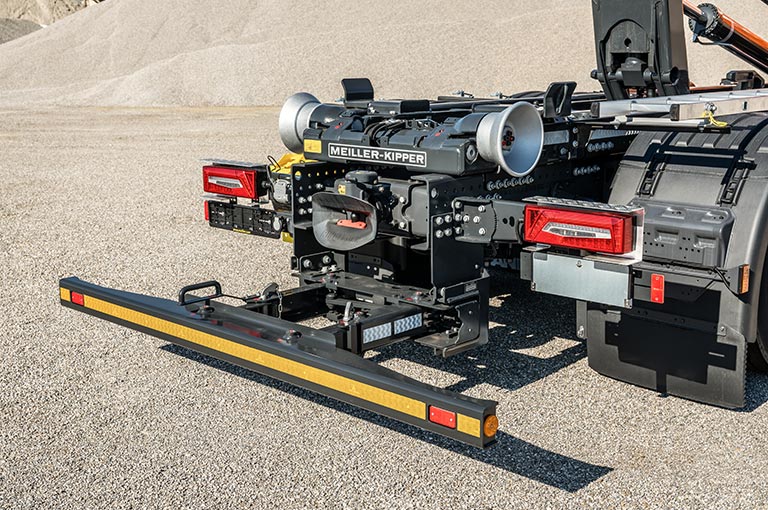

Underrun protection
Underrun protection
Unterfahrschutz TECTRUM Abrollkipper

Underrun protection

Choose from the following options:

  • Rigid rear underrun protection
  • Hydraulic or mechanical scissors-type rear underrun protection
  • Hydraulically or mechanically folding rear underrun protection
Multifunctional plate
Multifunctional plate
Multifunktionsplatte für TECTRUM Abrollkipper

Multifunctional plate

Bolted mounting plates with a zinc-nickel coating provide a neat, protected mounting arrangement for various components. The preformed hole pattern accommodates rear lights, trailer connections, plates and other components.

Operate with convenience with the i.s.a.r.-control

Control your MEILLER hooklift easily and safely with the MEILLER i.s.a.r.-control radio control unit. Two different programme sequences are available:

  1. Roll-off the skip: extend the axle support struts, unlock the container lock, extend and swivel out the lifting arm, retract the underride guard

  2. Pull-up the skip and make ready to travel: swivel in the lifting arm, extend the lifting arm, extend the container lock, retract the axle support struts

With the preprogrammed sequence control processes operation is even easier.

More information on the i.s.a.r.-control

Reduced-noise operation

Work with less noise: our optional plastic support pads or hydraulic roller supports allow the container to slide onto the hooklift with minimal friction. Both options ensure gentle, quieter loading of the container.

Kunststoffauflage TECTRUM Abrollkipper

Plastic support pads

The bolted-on plastic support pads reduce friction and therefore noise when moving the loaded container.

Hydraulische Rollenauflage TECTRUM Abrollkipper

Hydraulic roller supports

The ideal solution for moving the container with minimal friction:

The rollers extend automatically as soon as the hook arm moves. When the sliding function is inactive, the rollers lower automatically, preventing the container from moving during travel.

Gallery & Videos

TECTRUM® hooklifts in action

Video: The new RS26 hooklift

Video: RS21 hooklift

Downloads

*Pictures similar, can include additional equipment.
